Seedling Tray Washing Machine

Seedling Tray Washing Machine


•Our aim in the production of Trua Agricultural Machines is to concentrate on farmer-friendly systems that will make the agricultural producer life easier and reduce the cost at the same time.

• The trays used in seedling cultivation and trays should be washed and disinfected before the next
use, otherwise virus and bacterial diseases will occur in the seedlings.

• SEEDLING TRAY is the settling medium that is planted so that the plant seeds can become seedlings.
In the reuse of trays, they must be well disinfected in order to prevent viruses and bacteria from forming and damaging the seedlings. Hand-washed trays cannot be disinfected well and cause too much water usage.

• We implemented the SEEDLING TRAY washing machine, which seedling growers had to order from abroad, as 100% domestic production.

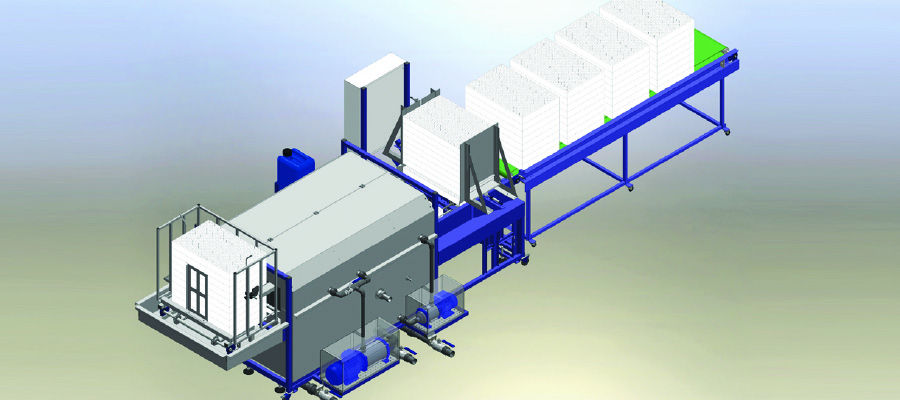

• The machine, which can be used by one person and can wash 600 trays per hour, is also disinfected after washing to prevent bacteria and fungus formation in the root part of the seedlings. Trays that can be washed and used many times, thus reducing the cost.

TECHNICAL SPECIFICATION

• Washing, disinfecting and stacking 600 trays per hour.

• Operation of the machine with a single worker, continuous supplying feature.

•Vertical and horizontal stacking feature.

• Washing and disinfection options according to the •
Seedling Tray dirt ratio, as well as controlled water and disinfectant consumption with the driver controlled pumps.

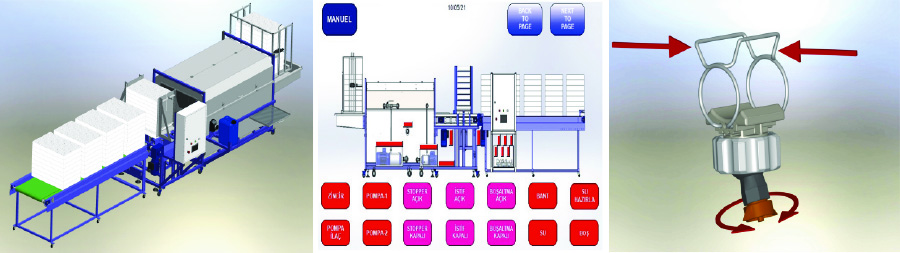

• Driver control for washing at the desired pressure and
washing feature between 6-12 bar (optional).

• Penetration of disinfectant to all crack depths on the
Seedling Tray with disinfection at a pressure of 3 bar (up to 5 bar).

• In extremely dirty situations, if deemed necessary, water consumption limited to 3 tons per hour with suction from the water mains and discharge, water circulation possibility with the use of tank water without using the water mains.

•2-stage protection (Screen and filtering system) to prevent clogging of nozzles and damage to the pump quickly.

• Possibility of access to all surfaces of the Seedling Tray and easy disassembly and assembly of the nozzles with removable and attachable imported PP body and stainless lock system nozzles with movable head and that can blow flat at 65 degrees.

•Periodic cleaning and maintenance opportunity due to the PVC piping system can be completely disassembled and installed.

• Easy transportation of the machine within the plant with the idler wheel and the possibility of using it on sloping surfaces with its adjustable foots.

•Machine design so that washing and disinfection can be done according to the Seedling Tray dimensions.

* Length: 315 – 470 mm
* Width: 516 – 730 mm
* Height: 50 – 73 mm

• Trua Tarım Makineleri üretiminde amacımız üreticinin hayatını kolaylaştırırken aynı zamanda maliyeti de düşürecek tarımsal üretici dostu sistemler üzerinde yoğunlaşmaktır.

• Fide ekimi ve yetiştiriciliğinde kullanılan viyollerin bir sonraki kullanımdan önce yıkanıp, dezenfekte edilmesi gerekmektedir. Aksi halde fidelerde virüs ve bakteri kaynaklı hastalıklar oluşur.

• Viyoller; bitki tohumlarının fide haline gelebilmesi için ekildikleri yetiştirme ortamlarıdır.

• Viyollerin tekrar kullanımında virüs ve bakterilerin oluşup fidelere zarar vermemesi için iyice dezenfekte edilmesi gerekir. Elle yıkanan viyoller hem iyi dezenfekre edilememekte hem de bu durum çok fazla su kullanımına ve viyol kaybına neden olmaktadır.

• Fide yetiştiricilerinin yurt dışında sipariş etmek zorunda kaldıkları ve büyük rakamlar ile satın aldıkları viyol yıkama makinesini %100 yerli üretim olarak hayata geçirdik.

•Tek kişinin kullanacağı ve saatte 600 viyol yıkayabilen makine aynı zamanda fidelerin kök kısmında bakteri ve mantar oluşumunu engellemek için yıkama sonrası dezenfekte de gerçekleştiriyor. Defalarca yıkanıp kullanılabilen viyoller ile viyol kaybı maliyetlerinin düşürülmesi ve hastalık oluşumlarının engellenmesi hedeflenmektedir.

TEKNİK ÖZELLİKLER

• Saatte 600 adet viyol yıkama, dezenfekte etme ve yığma. Tek işçi ile çalıştırılması ve kesintisiz kirli viyol besleme özelliği.

• Dikine ve yatay da yığma özelliği.

• Viyol kir oranına göre yıkama ve ilaçlama seçenekleri ayrıca pompa-sürücü kontrolü ile kontrollü su ve ilaç sarfiyatı.

• 6-12 bar arası (tercihli) yıkama özelliği ve istenilen basınçta yıkama için sürücü kontrolü.

• 3 bar (5 bara kadar) basınçta dezenfeksiyon ile ilaçlı suyun viyol üzerindeki tüm çatlak derinliklerine nüfuzu.

• Aşırı kirli durumlarda gerekli görülürse şebekeden emiş
ve tahliye ile saatte 3 ton ile sınırlı su sarfiyatı, şebeke kullanılmadan tank suyunun kullanımı ile su devir daimi imkanı.

• Nozulların tıkanmasını ve pompanın çabuk zarar görmesini engellemek maksadıyla 2 aşamalı koruma (Elek ve filtreleme sistemi)

• Söküp takılabilir ithal PP gövdeli ve paslanmaz kilit sistemi ile oynar başlıklı ve 65 derece yassı üfleyebilen nozullar ile viyolün her yerine ulaşım ve nozulların kolay sökülüp takılabilme imkanı.

• PVC borulama sisteminin komple sökülüp takılabilir olması ile periyodik temizlik ve bakım imkanı.
Avare teker ile makinenin tesisi içinde kolay taşınması ve denge ayakları ile eğimli yüzeylerde kullanım imkanı.

• Viyol ebatlarına göre yıkama ve ilaçlama yapılabilecek şekilde makine dizaynı.

* Uzunluk: 315-470 mm
* Genişlik: 516-730 mm
* Yükseklik: 50-73 mm
